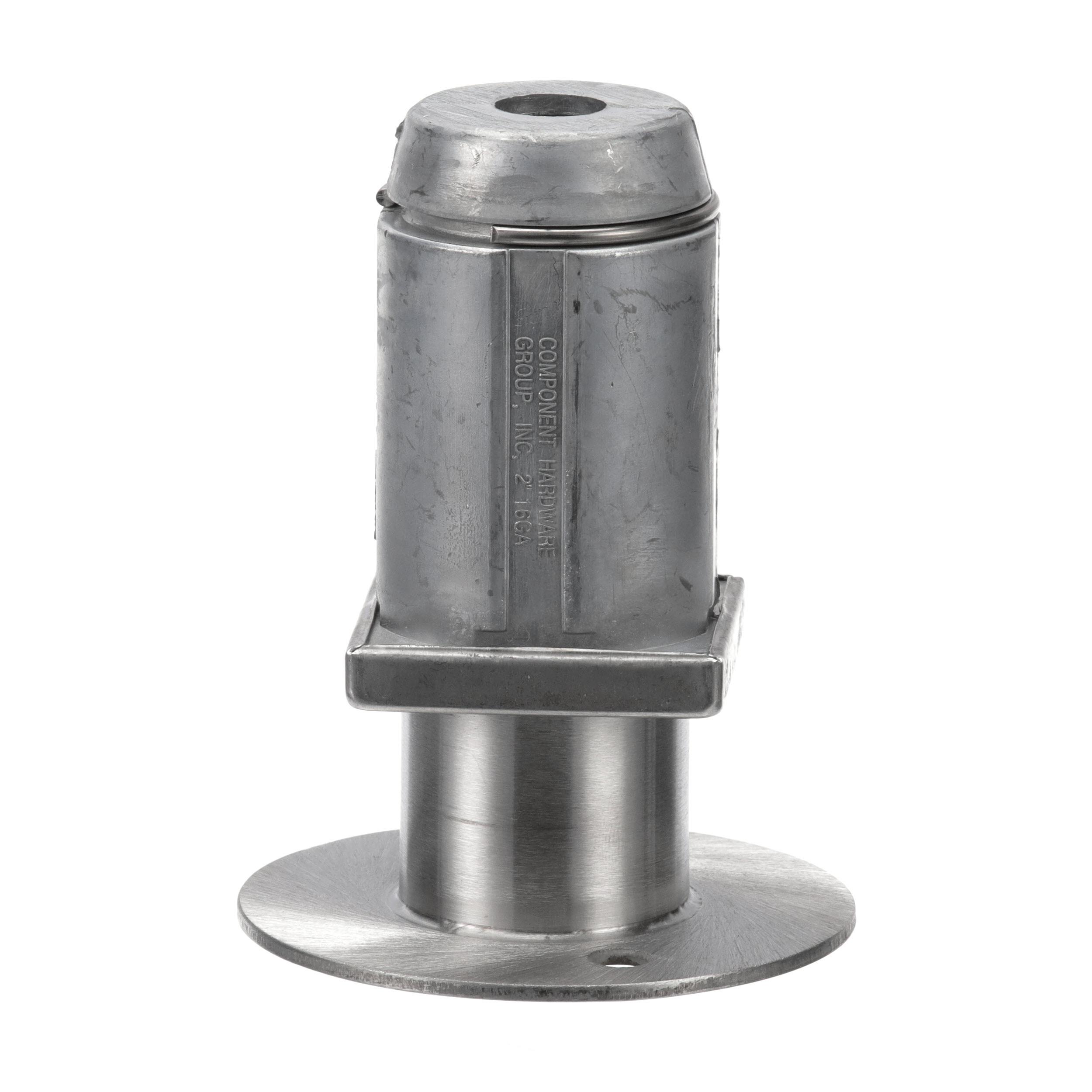

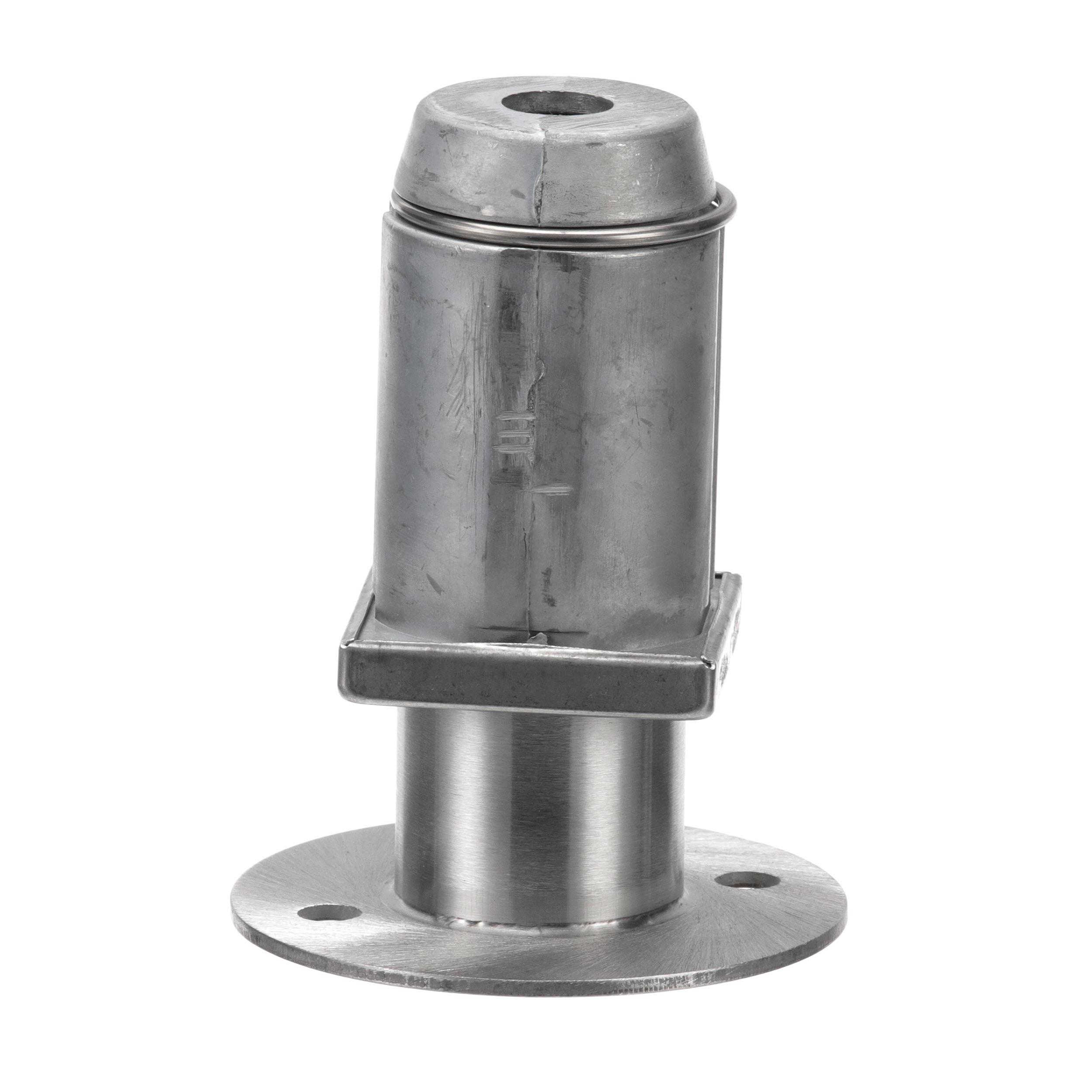

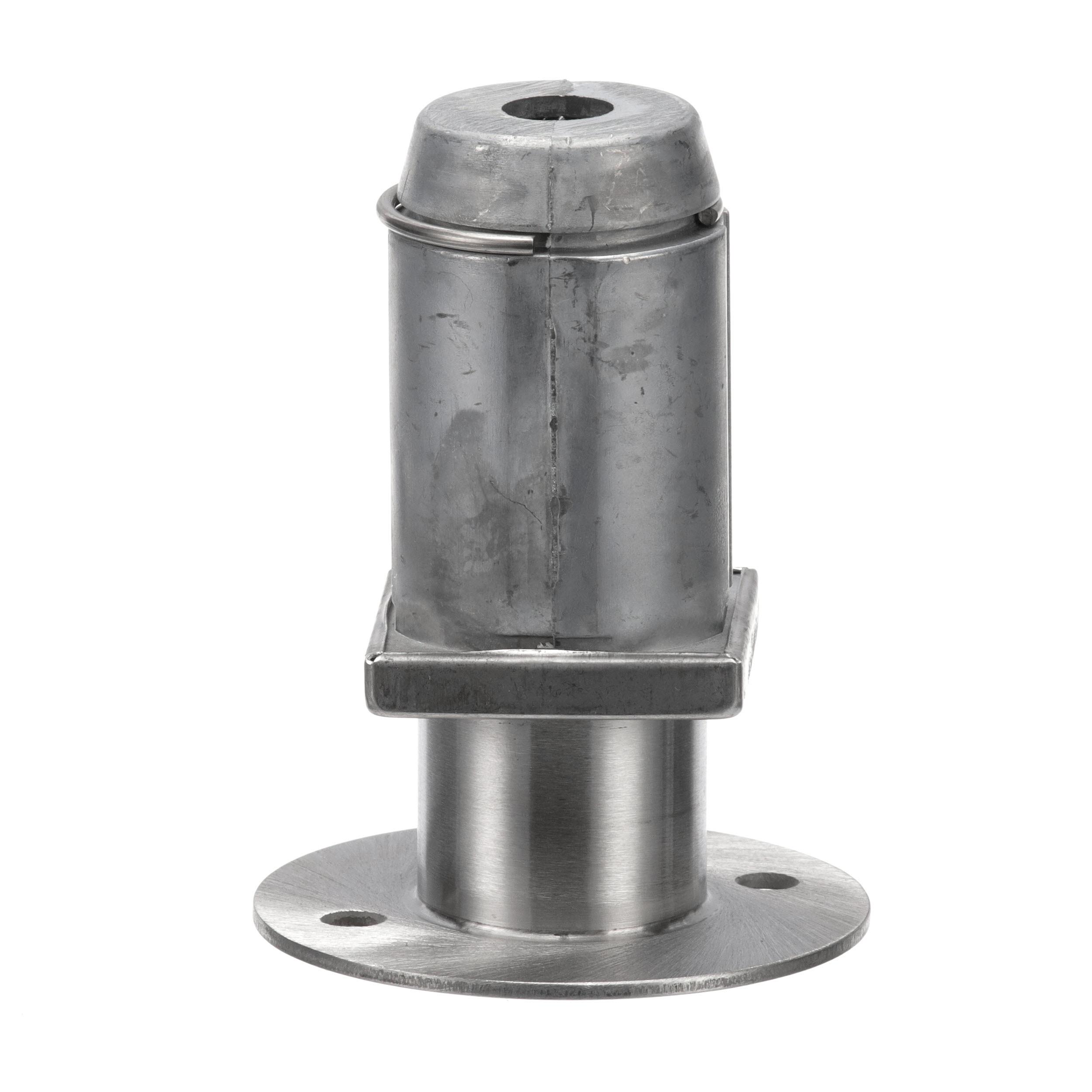

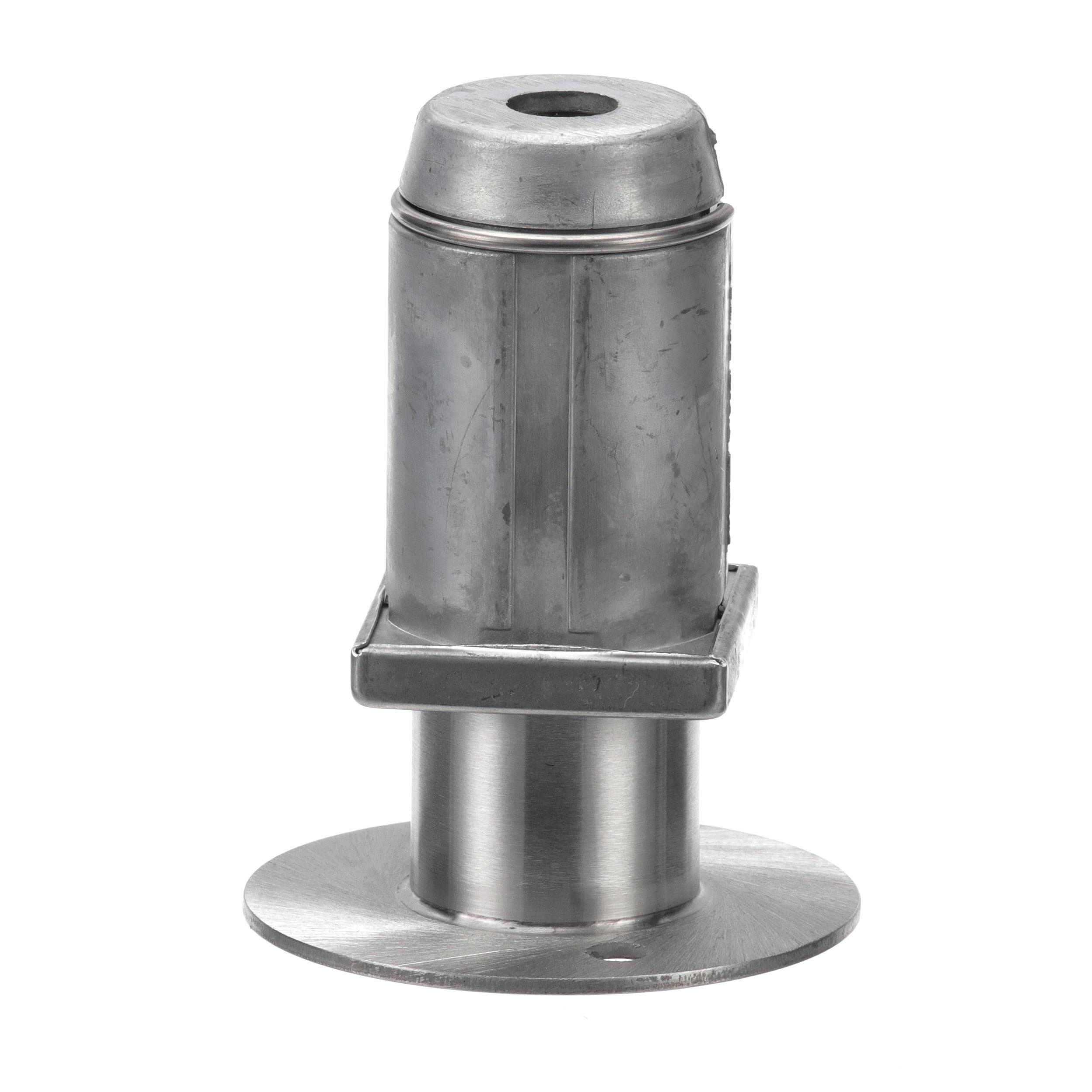

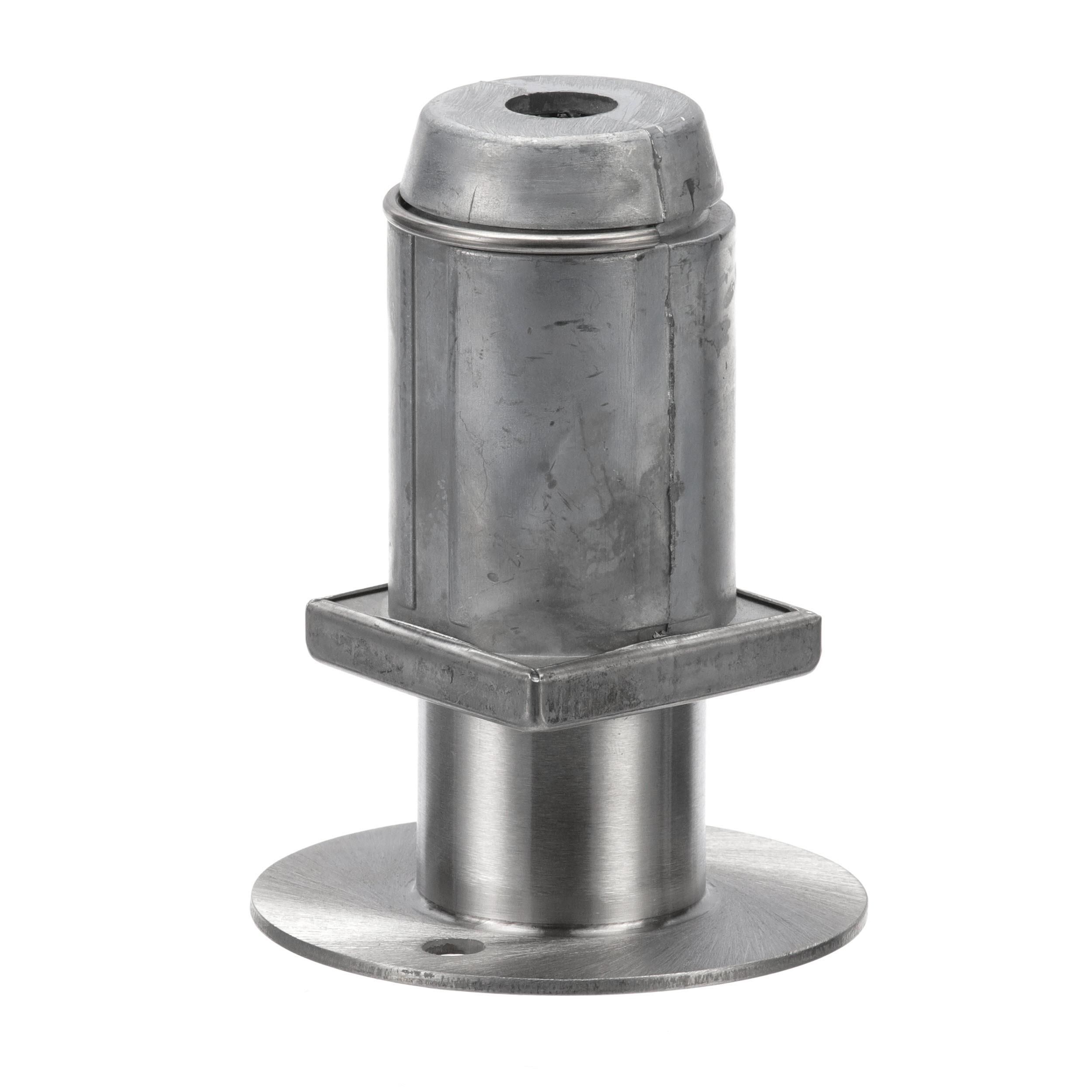

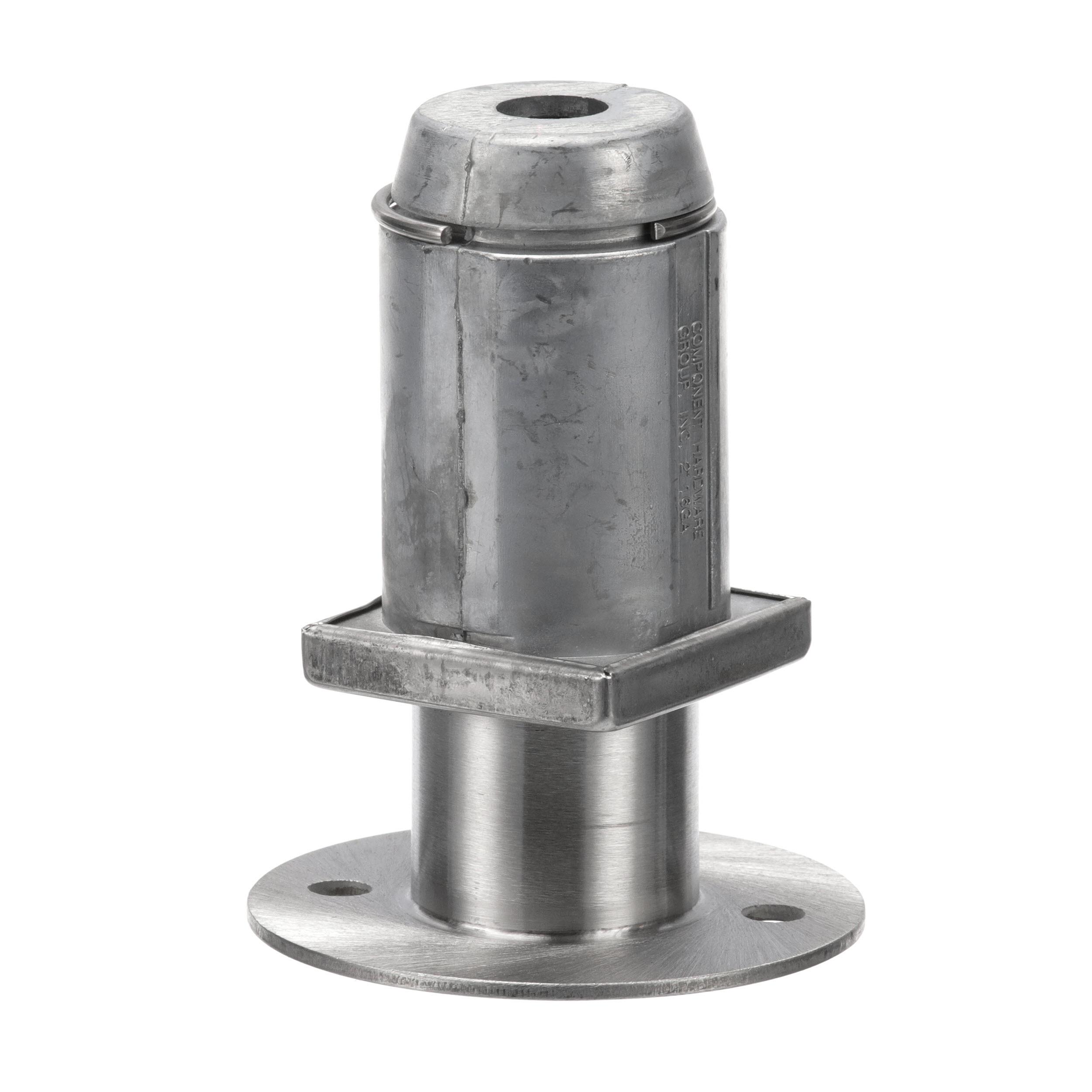

    2" Square Stainless Steel Clad Zinc Die Cast Adjustable Flanged Foot Insert With Mounting Holes

    • 2" Square Stainless Steel Clad Zinc Die Cast Adjustable Flanged Foot Insert With Mounting Holes
    • For use with 2" x 2" 16-gauge square tubing
    • Stainless steel clad zinc die cast construction
    • 1" height in fully closed postion
    • Adjustable toe permits leveling of equipment up to 2"
    • 3-1/2" OD 12-gauge stainless steel flanged toe with two 11/32" mounting holes spaced 2-1/2" OC permits secure fastening to the floor
    • 2,300 lbs static load capacity
    Model No: A15-0854-C
    Item No.: 1001407

    Related Resources


    SPC-A15-0854-C.pdf
    $53.24
    i h
    Products specifications
    LOAD RATING2300 LBS
    FINISH / COLORSTAINLESS STEEL CLAD
    GAUGE16 GAUGE
    LEG HEIGHT1 INCHES
    LEG MOUNTING TYPEPOP-IN
    TOE TYPEFLANGED TOE WITH HOLES
    LEG THREAD / PLATE / STEM SIZE002.000
    MEASUREMENT TYPEIMPERIAL
    PRIMARY MATERIALZINC
    SECONDARY MATERIALSTAINLESS STEEL
    TUBING SHAPESQUARE
    ADJUSTMENT RANGE002.000
